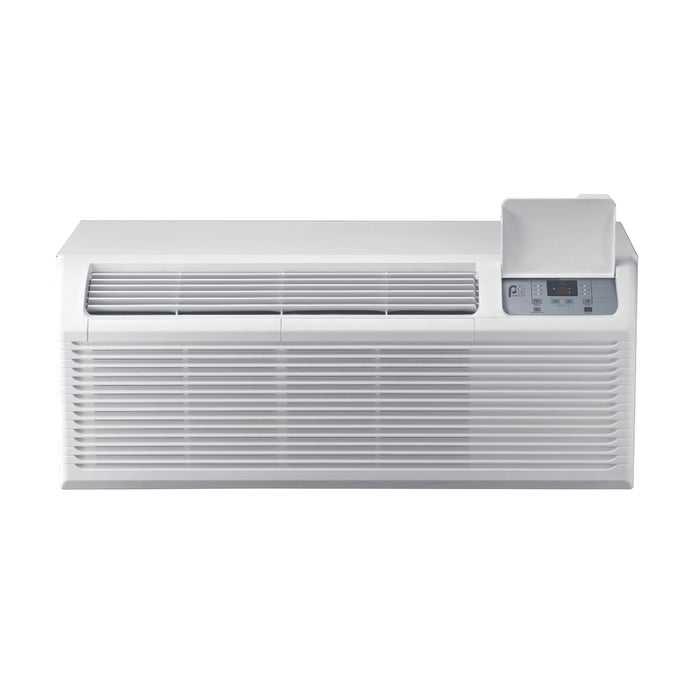

12,000 BTU 230V PTAC Heat Pump w/ 3.5 kW Electric Heat Assist

Name: 12,000 BTU 230V PTAC Heat Pump w/ 3.5 kW Electric Heat Assist
Brand: 4PTH12A-HE-3.5
SKU: 4PTH12A-HE-3.5
Availability: InStock

Model #4PTH12A-HE-3.5

Everything you need for total indoor comfort is concealed within the sleek profile of this packaged terminal air conditioner from Perfect Aire®. Heating and cooling individual rooms within commercial and residential spaces is simple, thanks to this energy efficient design. A robust 12,000 BTU capacity brings comfort to rooms up to 500 square feet—hello, apartments, hotels, hospitals and even sunrooms. with whisper-quiet operation and an understated all-in-one design that won’t interfere with your style or space. Smart features like automatic quick warm-up and high-temperature protection put comfort within reach while protecting the life of the unit.

FEATURES

• 12,000/11,800 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (10,900/8,900 BTU)

• Efficiently delivers comfort to rooms measuring approximately 450-500 sq. ft.

• Ideal for Active construction or retrofit requirements in commercial spaces

• Sleek design and low-profile footprint

• Quiet operation

• Energy efficient

• Memory Function

• EER (Energy Efficiency Rating) of 10.5

• Power input is 20A, 208V/230V-60Hz

• Compressor Restart Delay in Cool Mode

• High Temperature Protection in Heat Mode

SPECIFICATIONS

Cooling Capacity (BTU): 12000/11800

Heating Capacity (BTU): 10800/10500

Coverage Area (sq. ft.): 400-500

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 64-109

Heating Operating Temperature Range - Heat Pump (°F): 25-75

Heating Operating Temperature Range - Heat Strip (°F): No Min.-75

DIMENSIONS & WEIGHT

Unit Width (in.): 42.0

Unit Height (in.): 16.0

Unit Depth (in.): 21.0

Unit Weight (lb.): 116.0

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 20.0

No-Hassle Comprehensive Product Warranty

30 Month Full Replacement Warranty
