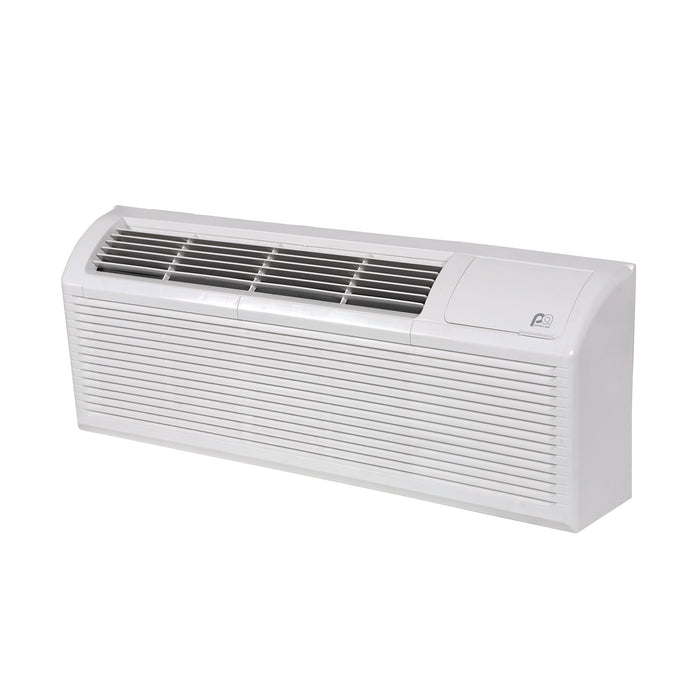

14,700 BTU 230V PTAC Heat Pump w/ 5.0 kW Electric Heat Assist

Name: 14,700 BTU 230V PTAC Heat Pump w/ 5.0 kW Electric Heat Assist
Brand: 4PTH15A-HE-5.0
SKU: 4PTH15A-HE-5.0
Availability: InStock

Model #4PTH15A-HE-5.0

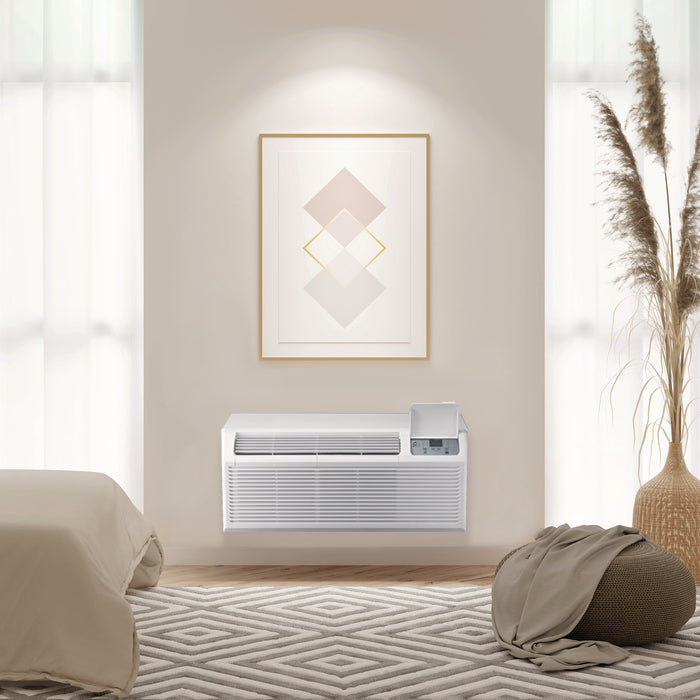

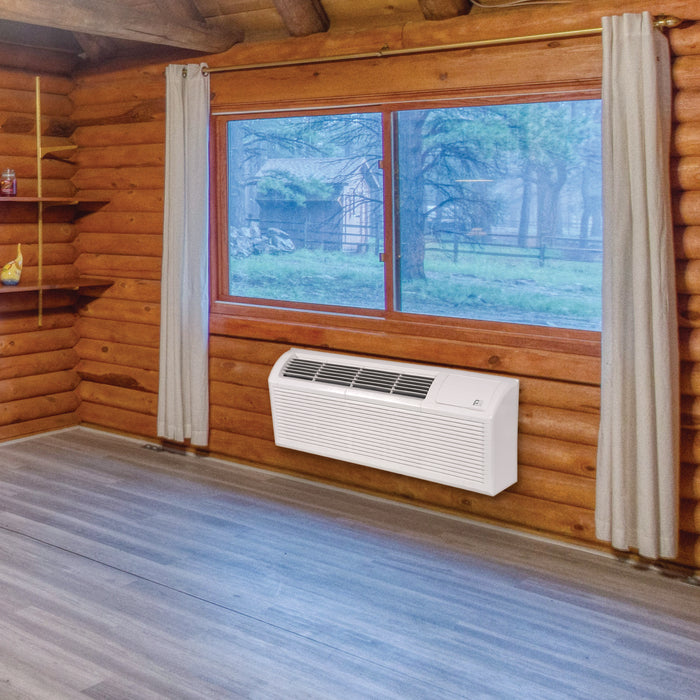

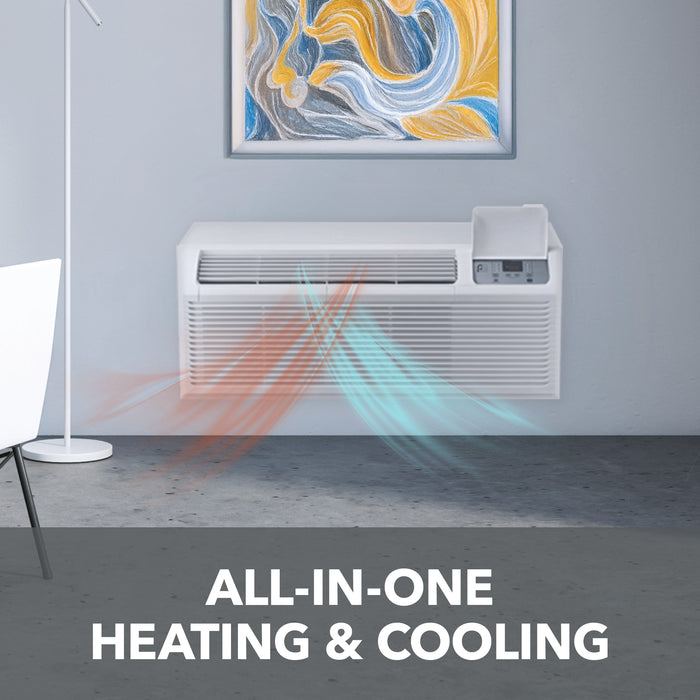

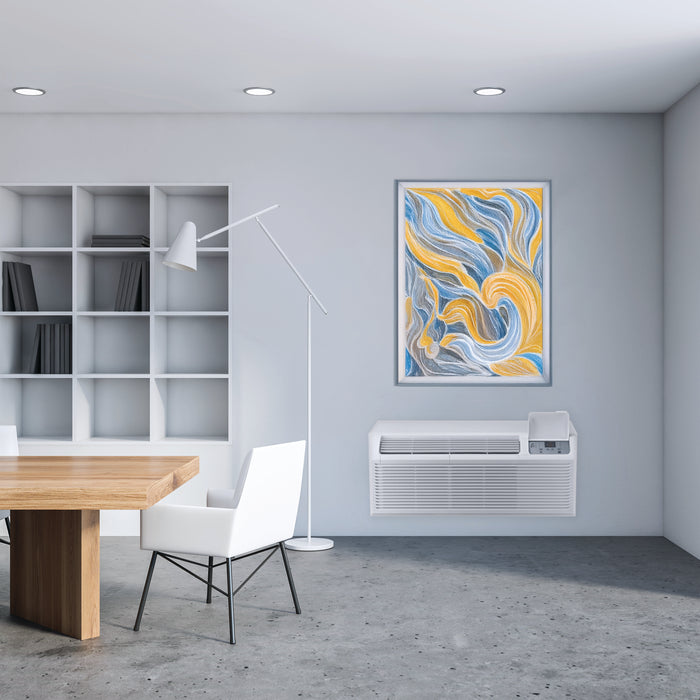

Put comfort in the hands of each and every hotel guest, apartment resident or hospital patient with this packaged terminal air conditioner from Perfect Aire®. With a 15,000 BTU capacity, this self-contained unit heats and cools rooms up to 700 square feet in both commercial and residential spaces. That perpetually drafty or stuffy sunroom will soon be the favorite gathering spot of the house. Concealed within a sleek, low-profile footprint is an energy efficient design that operates at a whisper-quiet hum. And it’s as smart as it looks with advanced features like automatic quick warm-up and defrost protection to prolong the life of the unit.

FEATURES

• 14,700/14,500 BTU Packaged Terminal Air Conditioner with 5.0kW electric heater (13,500/13,200 BTU)

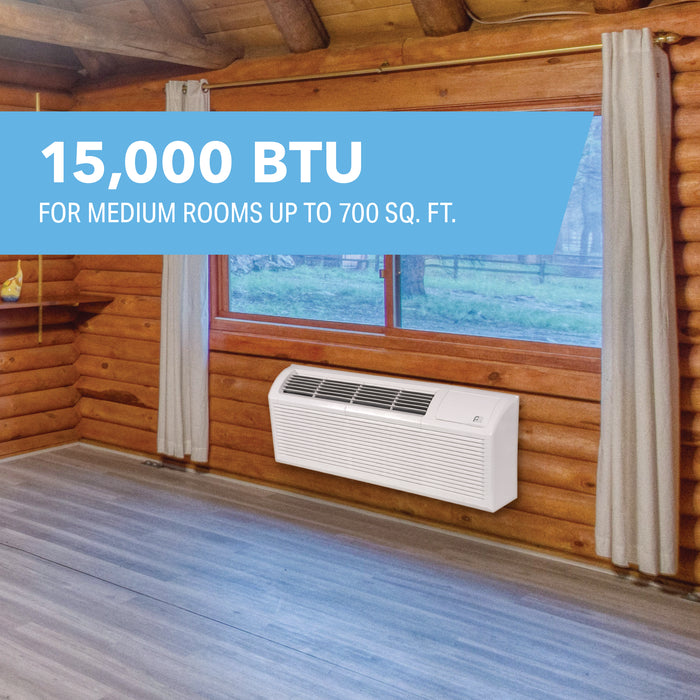

• Efficiently delivers comfort to rooms measuring approximately 550-700 sq. ft.

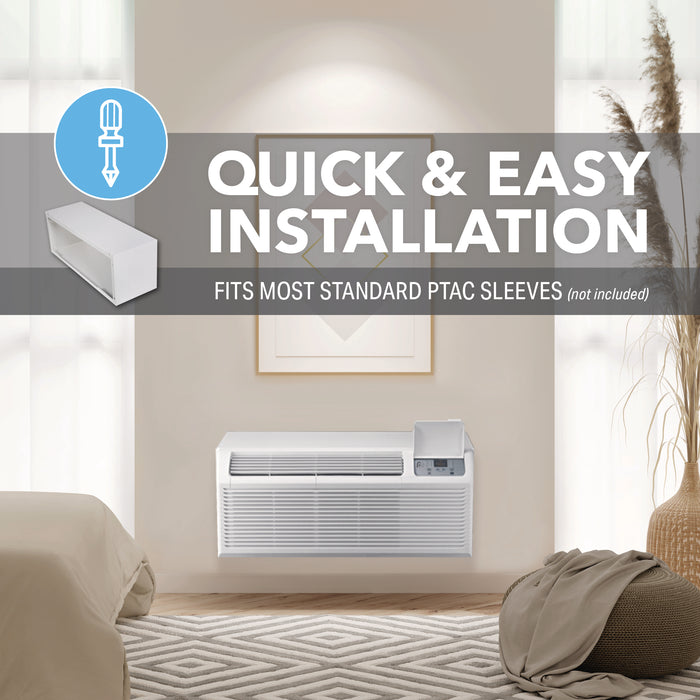

• Ideal for Active construction or retrofit requirements in commercial spaces

• Sleek design and low-profile footprint

• Quiet operation

• Energy efficient

• Memory Function

• EER (Energy Efficiency Rating) of 9.6

• Power input is 20A, 208V/230V-60Hz

• Compressor Restart Delay in Cool Mode

• High Temperature Protection in Heat Mode

SPECIFICATIONS

Cooling Capacity (BTU): 14700/14500

Heating Capacity (BTU): 13500/13200

Coverage Area (sq. ft.): 600-700

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 64-109

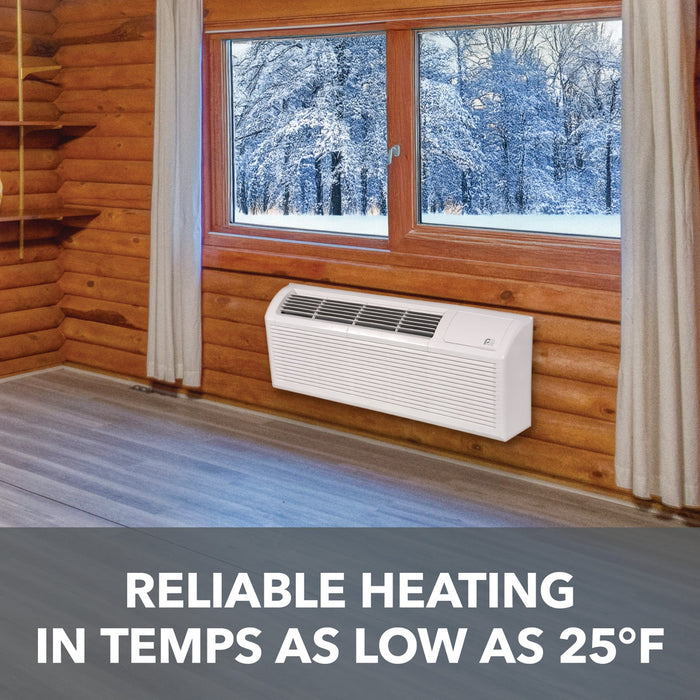

Heating Operating Temperature Range - Heat Pump (°F): 25-75

Heating Operating Temperature Range - Heat Strip (°F): No Min.-75

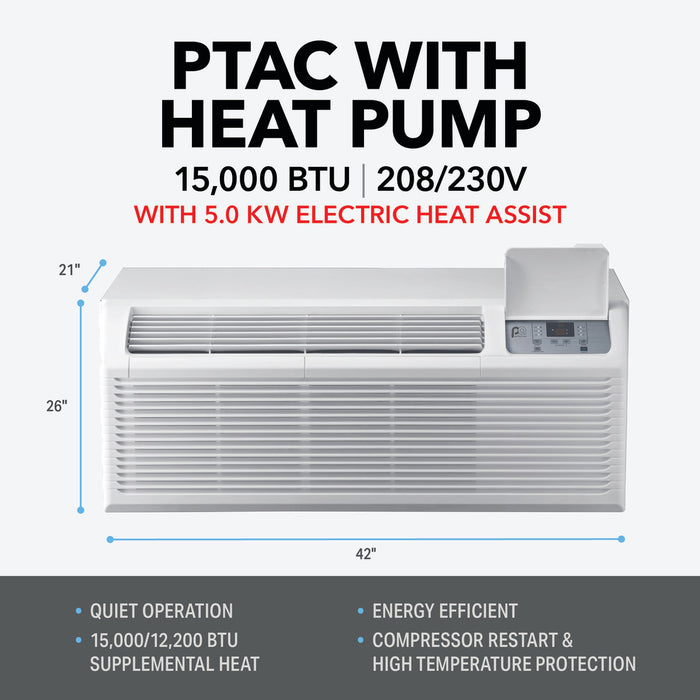

DIMENSIONS & WEIGHT

Unit Width (in.): 42.0

Unit Height (in.): 16.0

Unit Depth (in.): 21.0

Unit Weight (lb.): 117.0

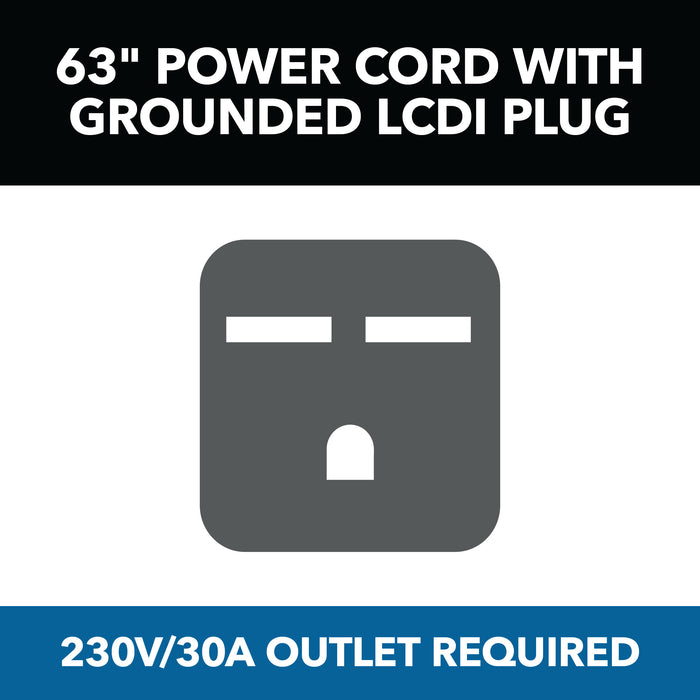

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 30.0

No-Hassle Comprehensive Product Warranty

30 Month Full Replacement Warranty
