12,000 BTU Quick Connect Mini-Split Single-Zone System with Indoor & Outdoor Units, Line Set - 115V, R454B refrigerant

Name: 12,000 BTU Quick Connect Mini-Split Single-Zone System with Indoor & Outdoor Units, Line Set - 115V, R454B refrigerant
Brand: 4PAMSHQC12
SKU: 4PAMSHQC12
Availability: InStock

Model #4PAMSHQC12

Whether you're looking for innovative cooling or supplemental heating power, this Perfect Aire Quick Connect Mini-Split has your back, all without the need for ducts. Flexible, zoned cooling and heating can be yours with this 12,000 BTU mini-split, designed to cool spaces up to 500 sq. ft. Delivering maximum comfort, efficiency and temperature control, this system is the perfect solution for year-round comfort with primary cooling on those hot, summer days and supplemental heating for those annoying cold spots. Even better, our innovative line set attachments allow for do-it-yourself installation — no extra refrigerant required or system evacuation necessary. This system can be set-up within hours so you can start feeling cool comfort right away. Once installed, easily control your comfort with programmable modes, a smart mobile application and a handy remote that acts like a portable thermostat.

FEATURES

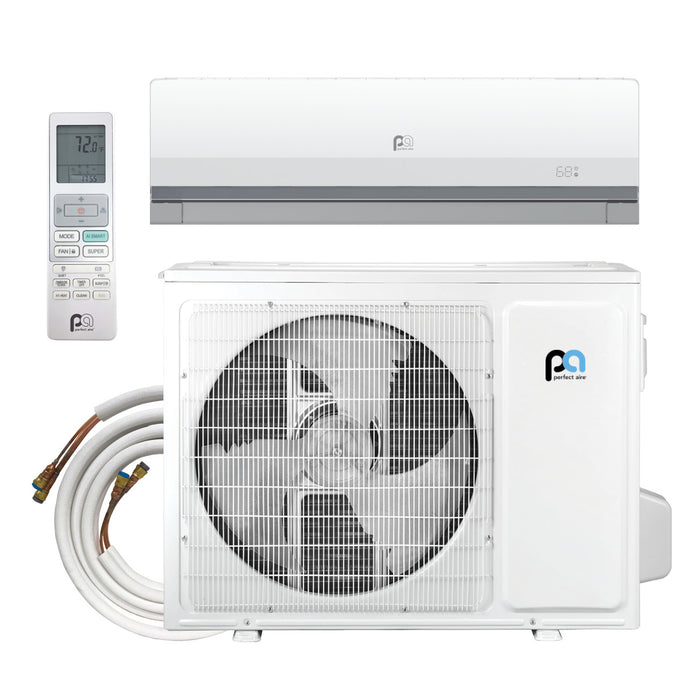

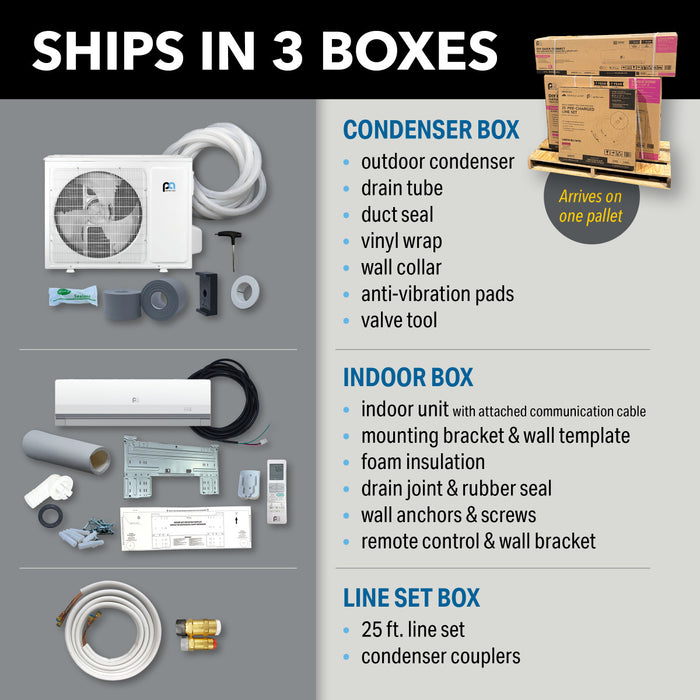

• 12,000 BTU Quick Connect Mini-Split built for bringing comfort to single-zone environments up to 500 sq. ft. System includes high-wall indoor air handler, mounting bracket, outdoor condenser, cable & line set with quick connect adapters and installation accessories.

• AHRI certified and Energy Star rated with a high-efficiency 22.0 SEER.

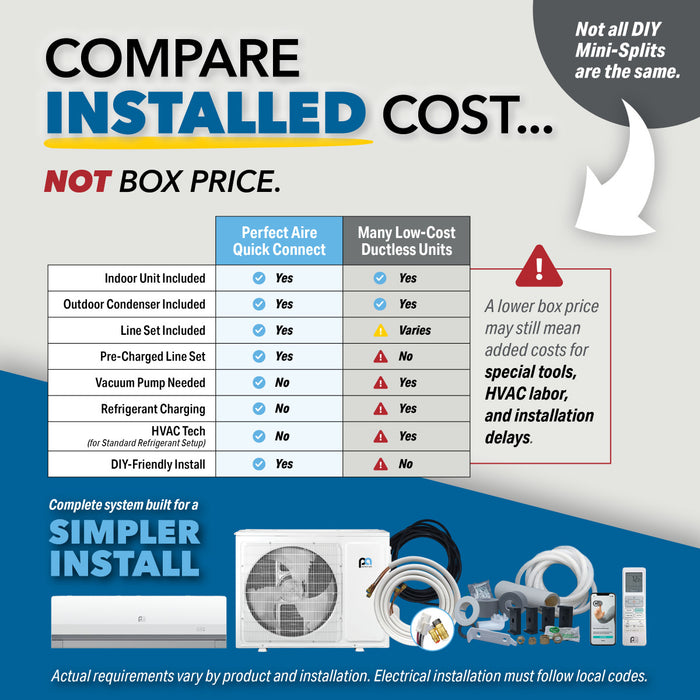

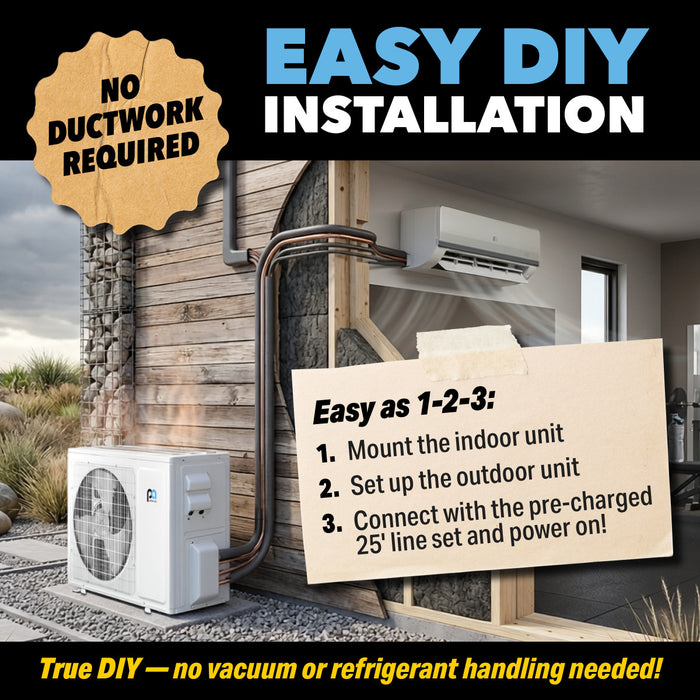

• Perfect for the DIY home installer, this Perfect Aire Quick Connect Mini-Split includes revolutionary Quick Connect adaptors for ultra-easy installation, no need to charge or evacuate refrigerant.

• Control room temperature, set fan speeds and create programmable, intelligent modes for when you're at home or away, all from your mobile device with the convenient mobile app.

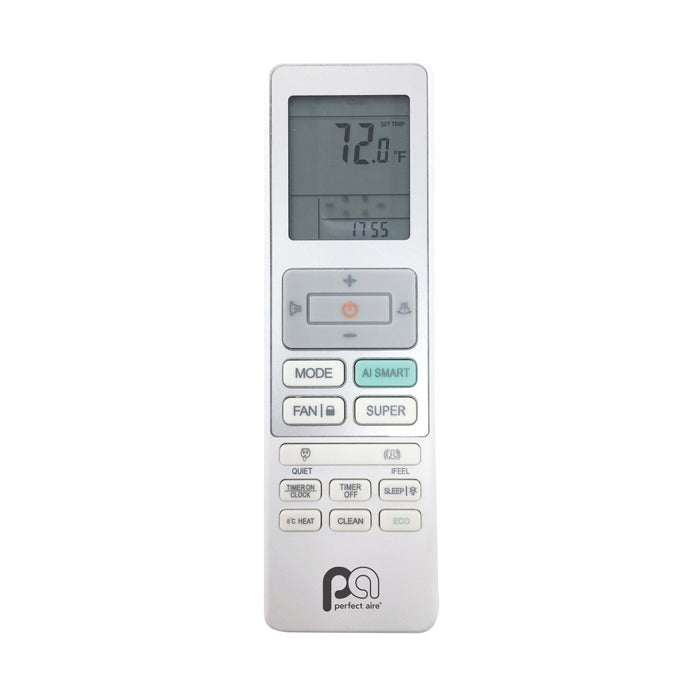

• System includes a full-function remote control with a built-in thermostat that puts you in control of your comfort from anywhere in the room.

• You're in control of your comfort with 7 indoor fan speeds, adjustable vertical and horizontal swing louvers, a programmable 24-hour timer and convenient smart, super and auto functions

• Sleek high-wall indoor air handler features a reusable and eco-friendly filter. Just slide-out and wash with soap and water — no need to purchase replacements

System features premium R454B, an energy-efficient and environmentally friendly refrigerant that yields high-performance results and meets the EPA's 2025 Global Warming Potential (GWP) regulations.

• The high-performance inverter heat pump is designed to provide efficient operation in a wide range of temperatures, all the way down to 41°F (-15°C) in cooling mode and -4°F (-20°C) in heat mode.

• System includes models 4PAMSHQCW12, 4PAMSHQCO12, and 2DALS14-38-25

SPECIFICATIONS

Cooling Capacity (BTU): 12000

Heating Capacity (BTU): 12000

Coverage Area (sq. ft.): 500

Smart Home Compatible: Yes

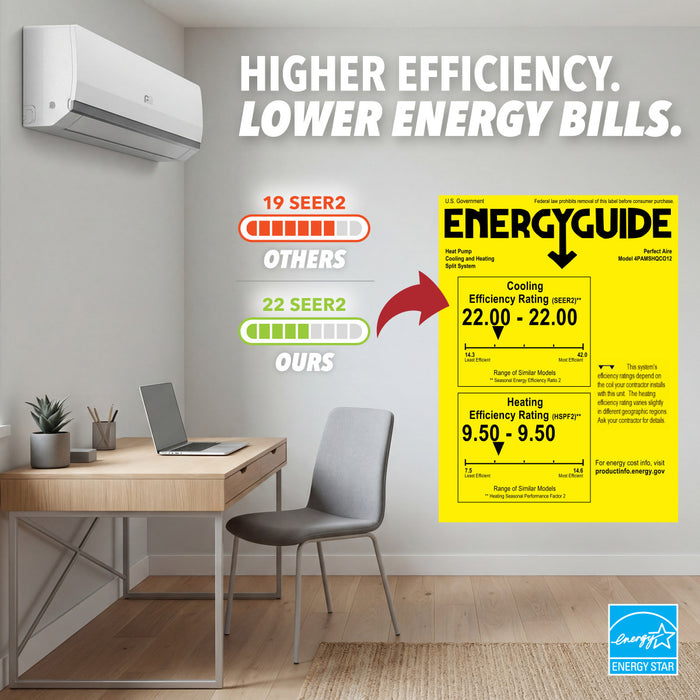

SEER2: 22

HSPF4: 9.5

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 5 - 115

Heating Operating Temperature Range (°F): 75 - -4

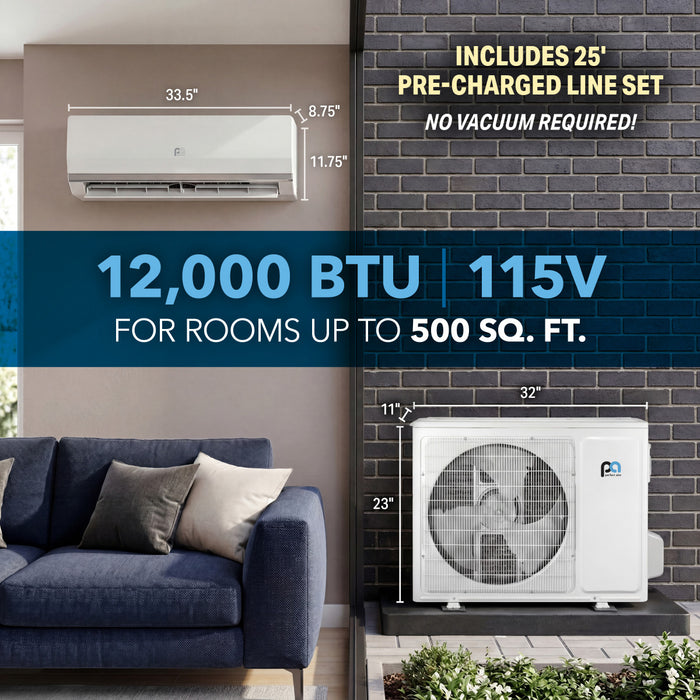

DIMENSIONS & WEIGHT

Indoor Unit Dimensions (WxHxD)(in.):
4PAMSHQCW12 33 x 11 x 8.75

Indoor Unit Weight (lb.):
4PAMSHQCW12 27.56

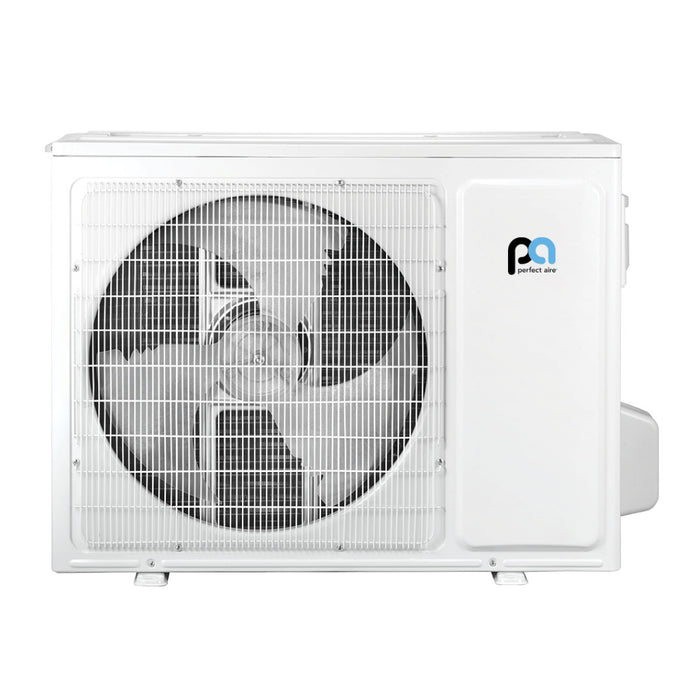

Outdoor Unit Dimensions (WxHxD)(in.):
4PAMSHQCO12 32 x 23 x 11

Outdoor Unit Weight (lb.):
4PAMSHQCO12 85.98

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 25.0

No-Hassle Comprehensive Product Warranty

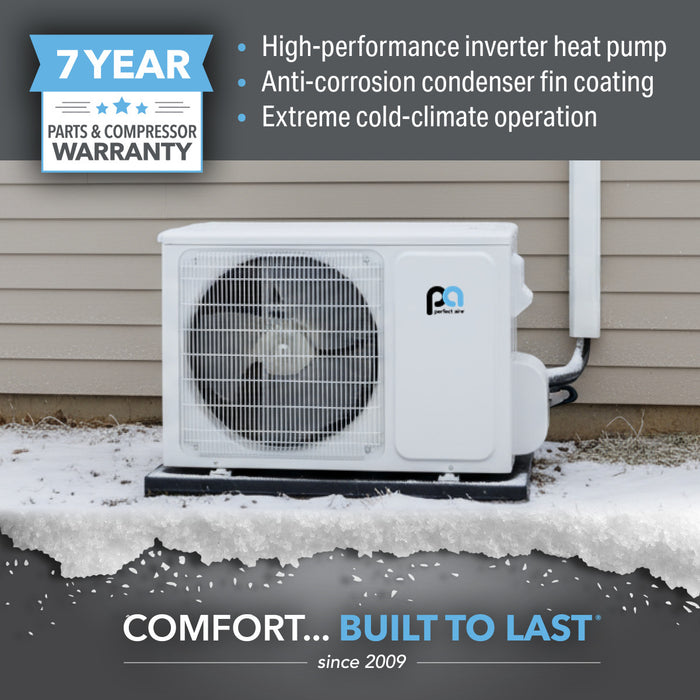

7 Years Parts/Compressor
