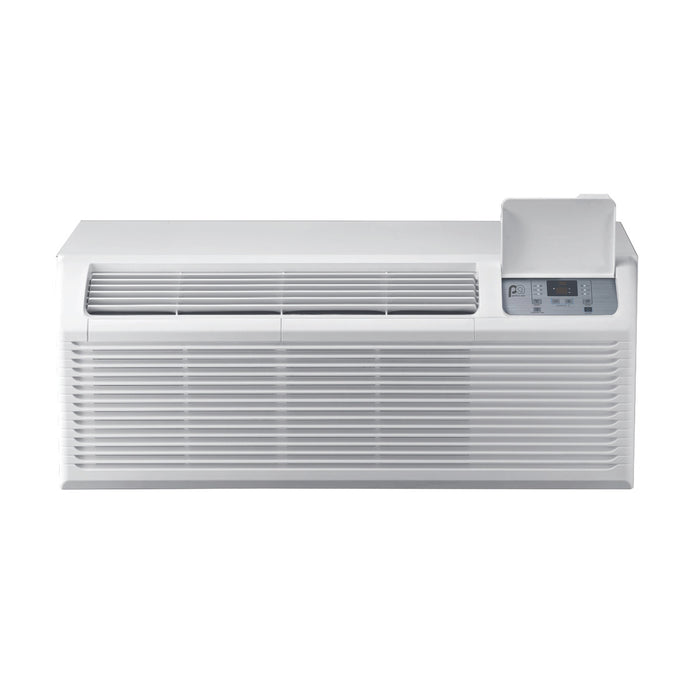

7,000 BTU 230V PTAC w/ 3.5 kW Electric Heat Assist

Model #4PTC07A-HE-3.5

When you want to heat or cool a space room-by-room, rather than building-by-building, this sleek unit is your answer. Engineered by Perfect Aire®, this 7,000 BTU packaged terminal air conditioner is the perfect fit for Active construction or retrofit requirements in commercial spaces like hotels and apartments, or drafty sunrooms. The self-contained design does it all with a quiet operation and low-profile footprint. Swiftly heat or cool rooms up to 300 square feet with total energy efficiency and plenty of smart features, like compressor restart delay to prevent short-cycling and high-temperature protection during heat mode. You can rest easy knowing your customers or tenants are comfortable while your energy bills go down, down, down.
FEATURES

• 7,300/7,100 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (10,900/8,900 BTU)

• Efficiently delivers comfort to rooms measuring approximately 250-300 sq. ft.

• Ideal for Active construction or retrofit requirements in commercial spaces

• Sleek design and low-profile footprint

• Quiet operation

• Energy efficient

• EER (Energy Efficiency Rating) of 11.9

• Power input is 20A, 208V/230V-60Hz

• Compressor Restart Delay in Cool Mode

• High Temperature Protection in Heat Mode

• Automatic Evaporator Freeze Protection

SPECIFICATIONS

Cooling Capacity (BTU): 7300/7200

Heating Capacity (BTU): 10900/8900

Coverage Area (sq. ft.): 250-350

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 64 - 109

Heating Operating Temperature Range (°F): No Min. - 75

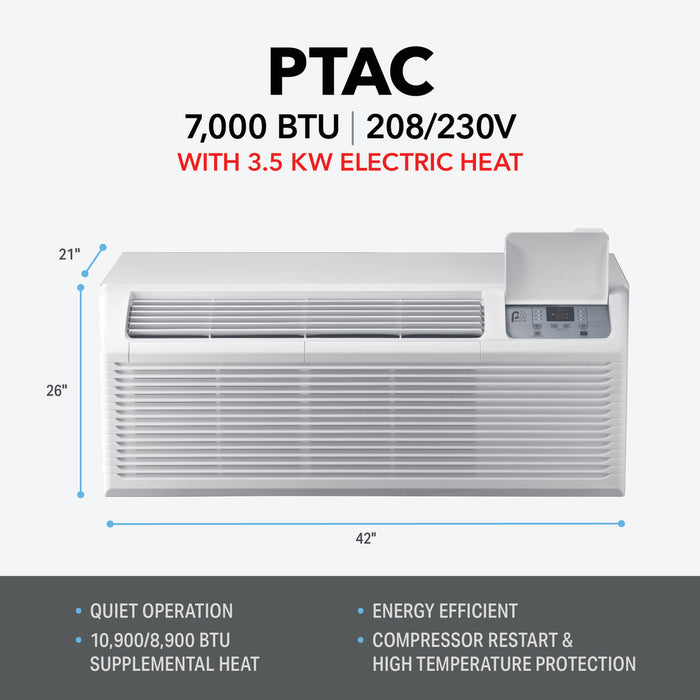

DIMENSIONS & WEIGHT

Unit Width (in.): 42.0

Unit Height (in.): 16.0

Unit Depth (in.): 21.0

Unit Weight (lb.): 101.75

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 20.0

No-Hassle Comprehensive Product Warranty

30 Month Full Replacement Warranty

TECHNICAL RESOURCES FOR MODEL 4PTC07A-HE-3.5

View available manuals, energy guides, or submittal sheets.
