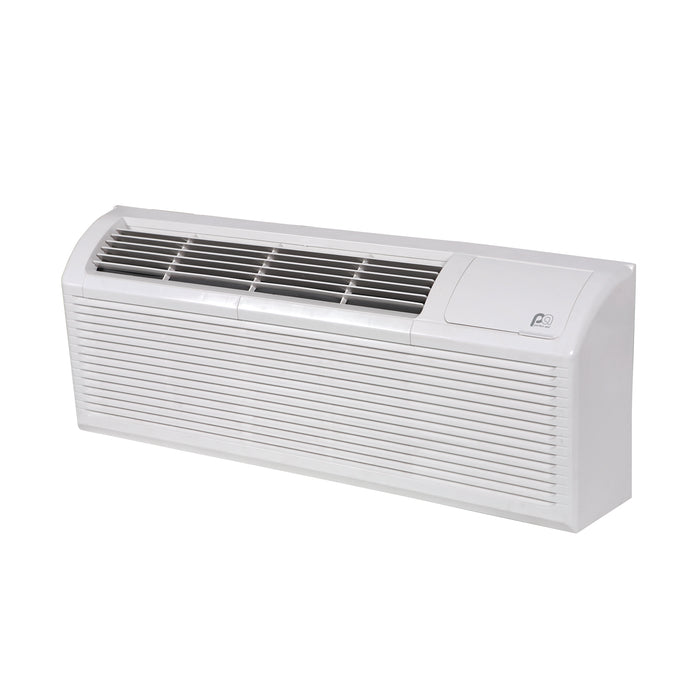

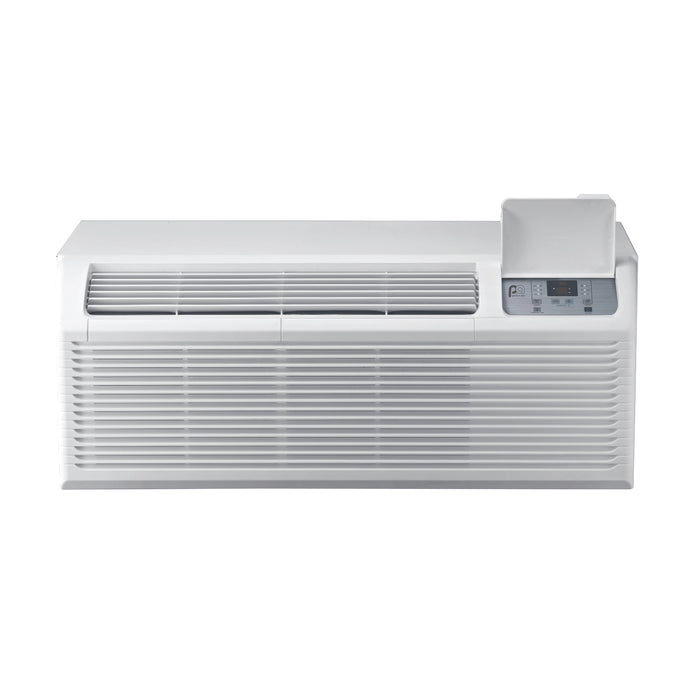

9,000 BTU 230V PTAC Heat Pump w/ 3.5 kW Electric Heat Assist

Model #4PTH09A-HE-3.5

Whether you need to outfit a Active construction building or retrofit an existing one with changing needs, this packaged terminal air conditioner from Perfect Aire® will get you in your comfort zone. With a 9,000 BTU capacity, this sleek unit heats and cools spaces up to 400 square feet with total energy efficiency. That’s good Actives for tenants and customers who can independently control their comfort in dorms, hotels and hospitals—and even better Actives for your shrinking energy bills. Smart features like automatic quick warm-up and compressor restart delay to prevent short cycling keeps the comfort coming while extending the life of the unit.
FEATURES

• 9,000/8,800 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (8,100/7,900 BTU)

• Efficiently delivers comfort to rooms measuring approximately 350-400 sq. ft.

• Ideal for Active construction or retrofit requirements in commercial spaces

• Sleek design and low-profile footprint

• Quiet operation

• Energy efficient

• Memory Function

• EER (Energy Efficiency Rating) of 11.3

• Power input is 20A, 208V/230V-60Hz

• Compressor Restart Delay in Cool Mode

• High Temperature Protection in Heat Mode

SPECIFICATIONS

Cooling Capacity (BTU): 9300/9200

Heating Capacity (BTU): 8100/7900

Coverage Area (sq. ft.): 300-400

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 64 - 109

Heating Operating Temperature Range - Heat Pump (°F): 25-75

Heating Operating Temperature Range - Heat Strip (°F): No Min.-75

DIMENSIONS & WEIGHT

Unit Width (in.): 42.0

Unit Height (in.): 16.0

Unit Depth (in.): 21.0

Unit Weight (lb.): 102.5

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 20.0

No-Hassle Comprehensive Product Warranty

30 Month Full Replacement Warranty
