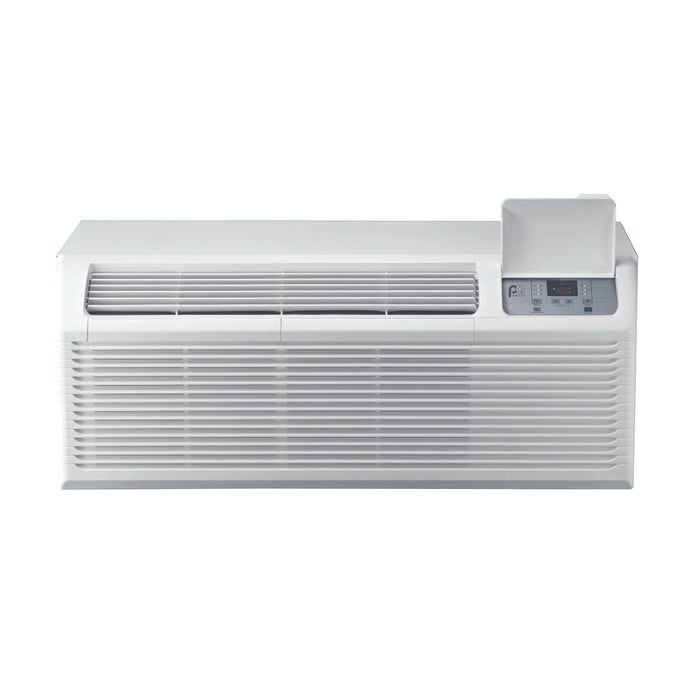

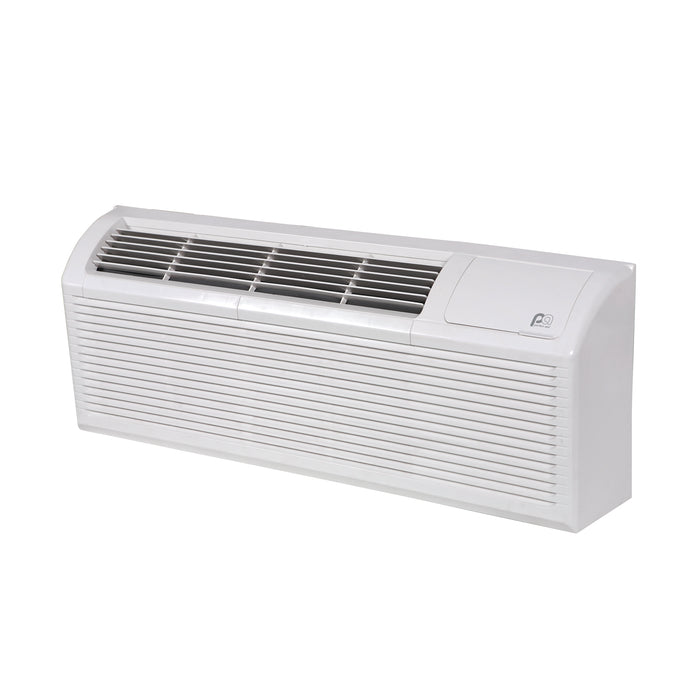

9,200 BTU 230V PTAC w/ 3.5 kW Electric Heat Assist

Name: 9,200 BTU 230V PTAC w/ 3.5 kW Electric Heat Assist
Brand: 4PTC09A-HE-3.5
SKU: 4PTC09A-HE-3.5
Availability: InStock

Model #4PTC09A-HE-3.5

Dorms, hotels, hospitals and apartments have never been more comfortable, thanks to this 9,000 BTU packaged terminal air conditioner from Perfect Aire®. Rather than offer a one-temperature-fits all blanket solution for an entire building, this sleek unit offers independent room control with total energy efficiency. Perfect for drafty sunrooms, the self-contained design goes from heat to cool at the touch of a button to bring comfort to rooms up to 400 square feet. With a low-profile design, this unit seamlessly fits Active construction or retrofit requirements. Worry not about overworking the system. Smart features like compressor restart delay in cool mode and high-temperature protection in heat mode keep everything safely in check.

FEATURES

• 9,200/9,000 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (10,900/8,900 BTU)

• Efficiently delivers comfort to rooms measuring approximately 350-400 sq. ft.

• Ideal for Active construction or retrofit requirements in commercial spaces

• Sleek design and low-profile footprint

• Quiet operation

• Energy efficient

• EER (Energy Efficiency Rating) of 11.3

• Power input is 20A, 208V/230V-60Hz

• Compressor Restart Delay in Cool Mode

• High Temperature Protection in Heat Mode

• Automatic Evaporator Freeze Protection

SPECIFICATIONS

Cooling Capacity (BTU): 9200/9000

Heating Capacity (BTU): 10900/8900

Coverage Area (sq. ft.): 300-400

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 64 - 109

Heating Operating Temperature Range (°F): No Min. - 75

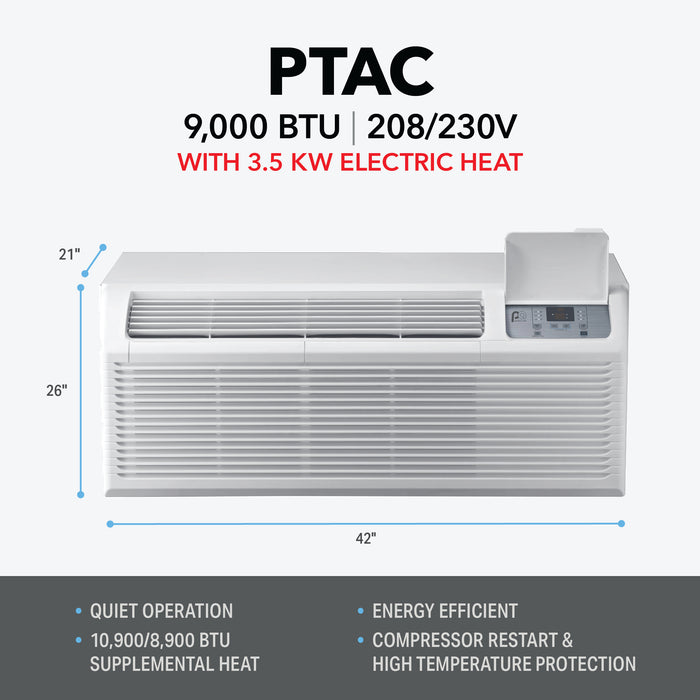

DIMENSIONS & WEIGHT

Unit Width (in.): 42.0

Unit Height (in.): 16.0

Unit Depth (in.): 21.0

Unit Weight (lb.): 98.25

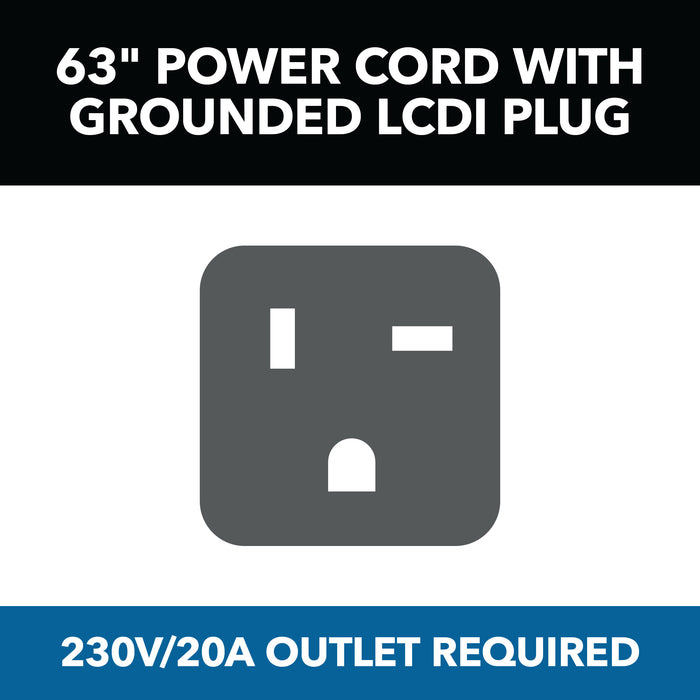

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 20.0

No-Hassle Comprehensive Product Warranty

30 Month Full Replacement Warranty
